Trabalho prático com rcontroll - Dia 2

Introdução prática ao TROLL 4 com rcontroll

Sylvain Schmitt

CIRAD

Apr 7, 2026

Introdução

TROLL 4.0: representando fluxos de água e carbono, fenologia foliar e variação intraespecífica de traços em um modelo de dinâmica florestal baseado em indivíduos de espécies mistas (Maréchaux et al. 2025)

Ambiente R

Durante esta sessão prática, utilizaremos o modelo TROLL 4.0 com arquivos brutos de uma saída de simulação. Também usaremos os pacotes tidyverse para manipulação de tabelas e criação de gráficos. Faça o download deles (pré-requisito!):

install.packages("tidyverse")

Carregue-os com:

library(tidyverse)

Entradas

As entradas e saídas brutas das simulações estão disponíveis em data/day2/.

Arquivos

list.files("data/day2/", pattern = "input")
[1] "R1_input_climate.txt"  "R1_input_daily.txt"    "R1_input_global.txt"
[4] "R1_input_pedology.txt" "R1_input_species.txt"

Espécies

O TROLL 4 introduz dois novos traços funcionais:

  • LA: área foliar (cm2)
  • TLP: potencial hídrico foliar no ponto de perda de turgor (MPa)

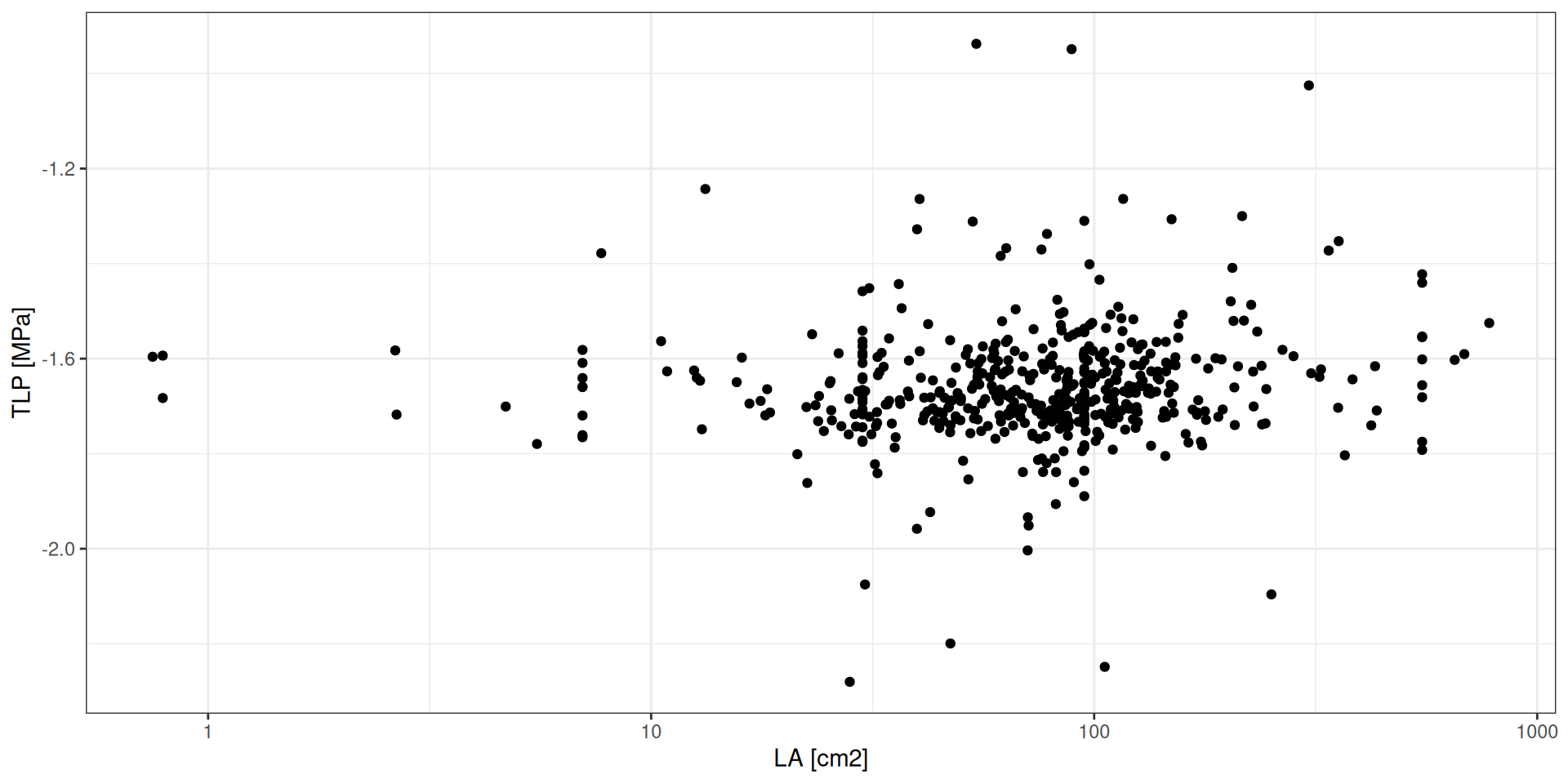

Espécies

read_tsv("data/day2/R1_input_species.txt") %>%
  select(s_name, s_leafarea, s_tlp) %>%
  ggplot(aes(s_leafarea, s_tlp)) +
  geom_point() + theme_bw() +
  scale_x_log10() + xlab("LA [cm2]") + ylab("TLP [MPa]")

Clima

O TROLL 4 agora utiliza exclusivamente valores a cada meia hora das 5 variáveis climáticas:

  • Temperature (°C)
  • Rainfall (cm)
  • WindSpeed (m/s)
  • VaporPressureDeficit (hPa)
  • Iradiance (W/m2)

OBS: rcontroll inclui uma função para ajudar na preparação dos dados climáticos (sessão do dia 3).

Clima

read_tsv("data/day2/R1_input_daily.txt")
# A tibble: 70,080 × 6
   DayJulian time_numeric  Temp  Snet    VPD    WS
       <dbl>        <dbl> <dbl> <dbl>  <dbl> <dbl>
 1         1          6    23.2   1.1 0.0830  2.35
 2         1          6.5  23.3   1.1 0.0981  2.39
 3         1          7    23.4   1.1 0.118   2.47
 4         1          7.5  23.5  24.9 0.120   2.51
 5         1          8    23.6  49.3 0.140   2.71
 6         1          8.5  23.9 101.  0.209   3.24
 7         1          9    24.2 154.  0.285   3.68
 8         1          9.5  24.6 181.  0.318   3.64
 9         1         10    25.0 209.  0.310   3.25
10         1         10.5  25.4 295.  0.295   2.82
# ℹ 70,070 more rows

Clima

read_tsv("data/day2/R1_input_climate.txt")
# A tibble: 2,920 × 2
   NightTemperature Rainfall
              <dbl>    <dbl>
 1             26.0   20.0
 2             26.6    2.72
 3             26.2    6.26
 4             26.7   13.7
 5             25.4   13.2
 6             24.3   16.6
 7             25.9    1.67
 8             26.2    7.40
 9             23.2   49.8
10             25.6    0.399
# ℹ 2,910 more rows

Clima

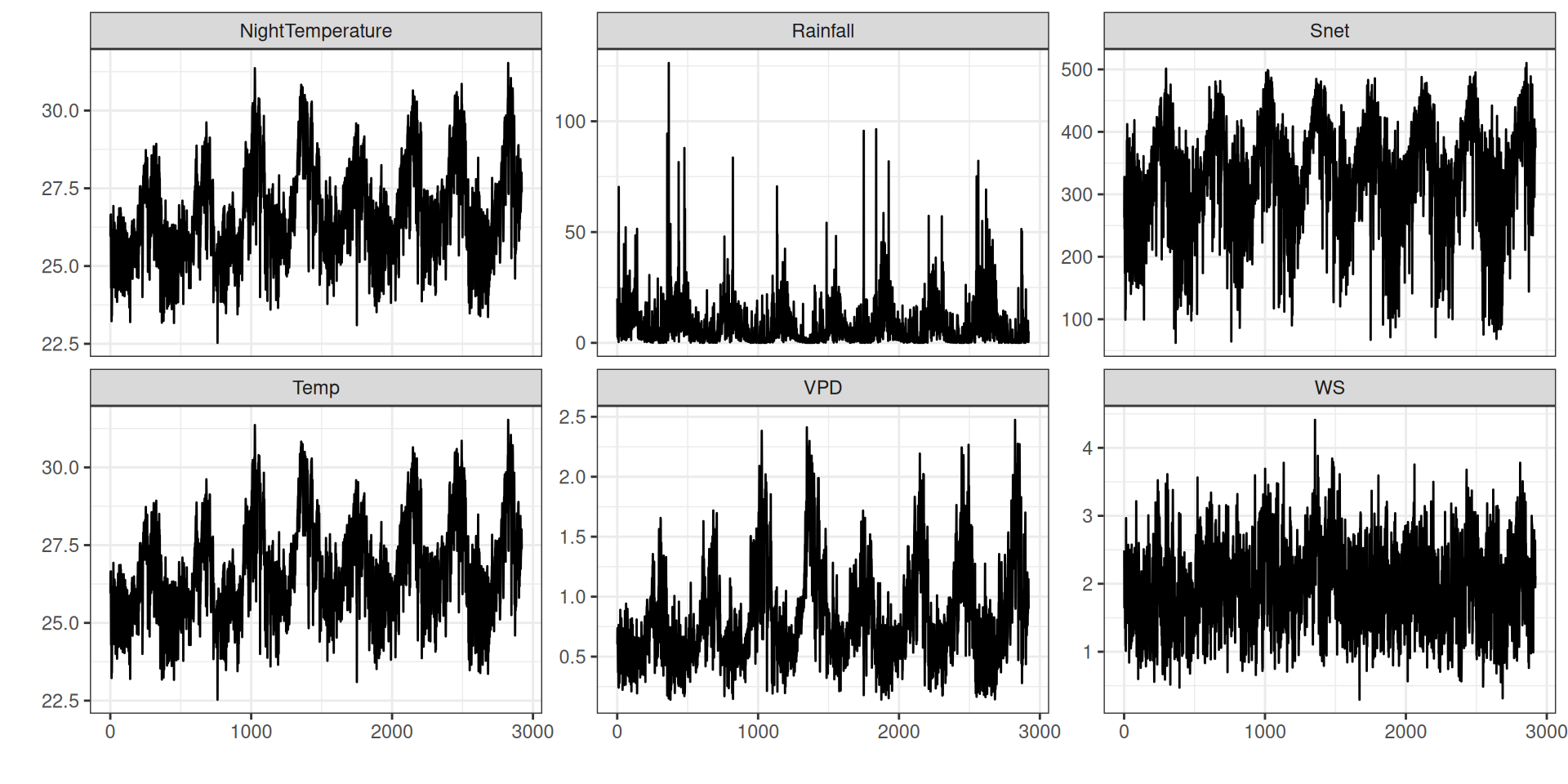

g <- read_tsv("data/day2/R1_input_daily.txt") %>%
  select(-time_numeric) %>%
  group_by(DayJulian) %>%
  summarise_all(mean) %>%
  bind_cols(read_tsv("data/day2/R1_input_climate.txt")) %>%
  gather(variable, value, -DayJulian) %>%
  ggplot(aes(DayJulian, value)) +
  geom_line() +
  facet_wrap(~ variable, scales = "free_y") +
  theme_bw() + xlab("") + ylab("")

Clima

g

Clima

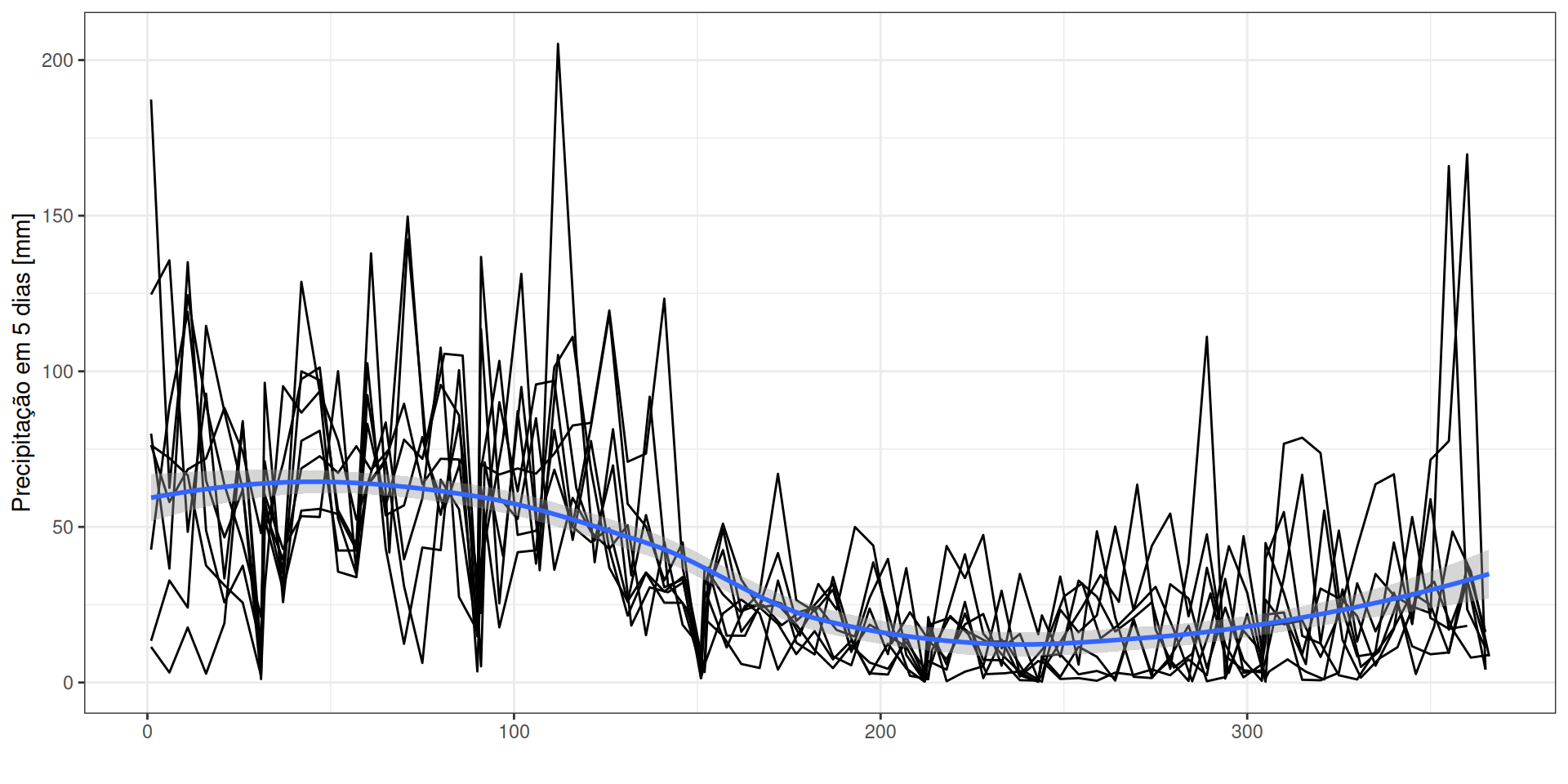

g <- read_tsv("data/day2/R1_input_climate.txt") %>%
  mutate(date = as_date("1999-01-01") + 1:n()) %>%
  group_by(pentad = floor_date(date, "5 days")) %>%
  summarise(pr = sum(Rainfall)) %>%
  ggplot(aes(yday(pentad), pr)) +
  geom_line(aes(group = year(pentad))) +
  theme_bw() +
  geom_smooth() + xlab("") + ylab("Precipitação em 5 dias [mm]")

Clima

g

Parâmetros

O TROLL 4 inclui novos parâmetros de ecossistema que controlam a fenologia, novos parâmetros intraespecíficos que controlam as variações de LA e TLP, e novas macros que controlam os pesos das camadas de solo e as equações da curva de retenção de água:

  • pheno_a0: limiar para mudança na taxa de queda de folhas velhas, em proporção do TLP
  • pheno_b0: limiar para mudança na taxa de queda de folhas velhas, em proporção da altura da árvore
  • pheno_delta: amplitude da mudança na taxa de queda de folhas velhas
  • sigma_LA: variação intraespecífica em LA (lognormal)
  • sigma_TLP: variação intraespecífica em TLP (normal)
  • SOIL_LAYER_WEIGHT: pesos das camadas de solo: biomassa relativa, condutância, transpiração máxima
  • WATER_RETENTION_CURVE: curva de retenção de água (Brooks & Corey ou Van Genuchten Mualem)

Solo

O TROLL 4 utiliza múltiplas informações de solo para parametrizar as curvas de retenção de água com Brooks & Corey ou Van Genuchten Mualem:

  • número de camadas
  • espessura da camada (m)
  • proporção de silte (%)
  • proporção de argila (%)
  • proporção de areia (%)
  • conteúdo orgânico do solo (g)
  • densidade aparente seca (kg)
  • pH
  • capacidade de troca catiônica (cmolC)

Solo

read_tsv("data/day2/R1_input_pedology.txt")
# A tibble: 5 × 8
  layer_thickness proportion_Silt proportion_Clay proportion_Sand   SOC   DBD
            <dbl>           <dbl>           <dbl>           <dbl> <dbl> <dbl>
1             0.1            2.64            60.1            37.3  2.54  1.12
2             0.4            2.64            60.1            37.3  2.54  1.12
3             1              2.64            60.1            37.3  2.54  1.12
4             2.5            2.64            60.1            37.3  2.54  1.12
5            12.1            2.64            60.1            37.3  2.54  1.12
# ℹ 2 more variables: pH <dbl>, CEC <dbl>

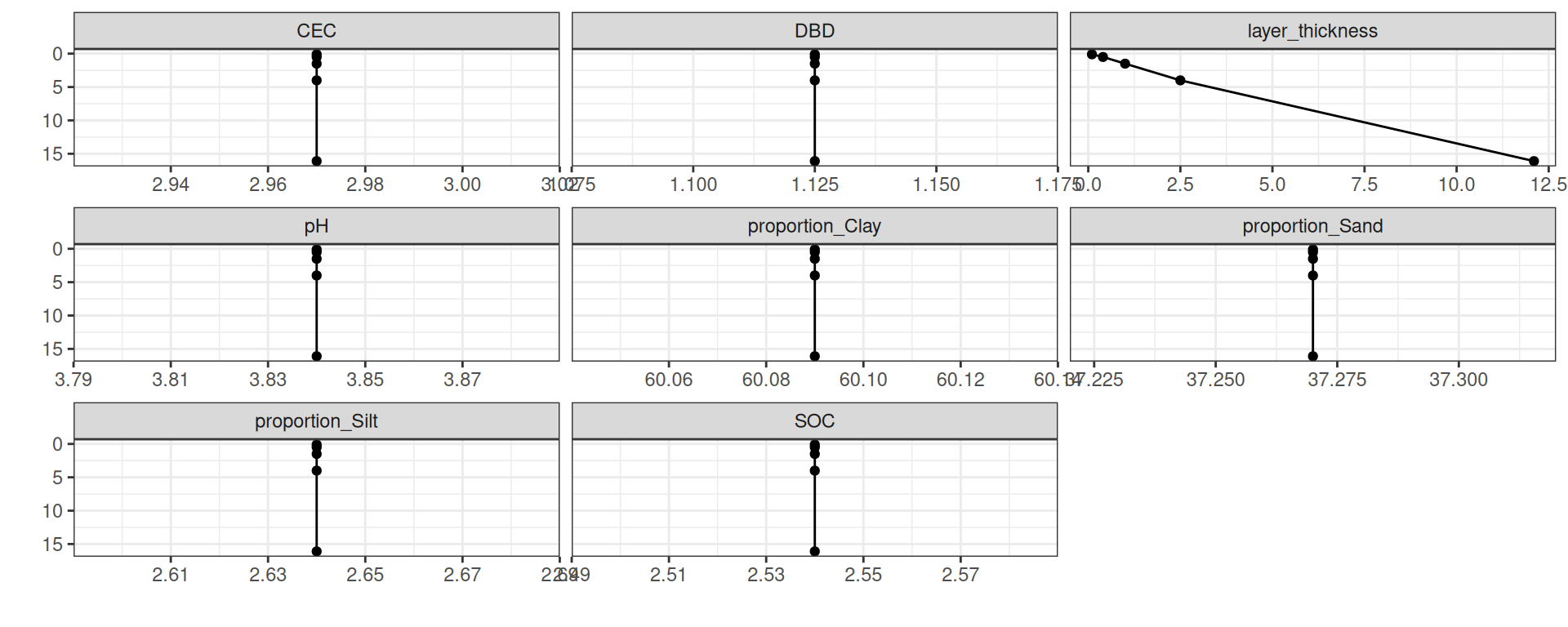

Solo

read_tsv("data/day2/R1_input_pedology.txt") %>%
  mutate(depth = cumsum(layer_thickness)) %>%
  gather(variable, value, -depth) %>%
  ggplot(aes(depth, value)) + geom_line() + geom_point() +
  facet_wrap(~ variable, scales = "free_x") + coord_flip() +
  scale_x_reverse() + theme_bw() + xlab("") + ylab("")

Saídas

Fluxos diários de carbono e água na atmosfera e no solo.

Arquivos

list.files("data/day2/")
 [1] "R1_0_LAIdynamics.txt"    "R1_0_LAImature.txt"
 [3] "R1_0_LAIold.txt"         "R1_0_LAIyoung.txt"
 [5] "R1_0_soilproperties.txt" "R1_0_sumstats.txt"
 [7] "R1_0_water_balance.txt"  "R1_input_climate.txt"
 [9] "R1_input_daily.txt"      "R1_input_global.txt"
[11] "R1_input_pedology.txt"   "R1_input_species.txt"

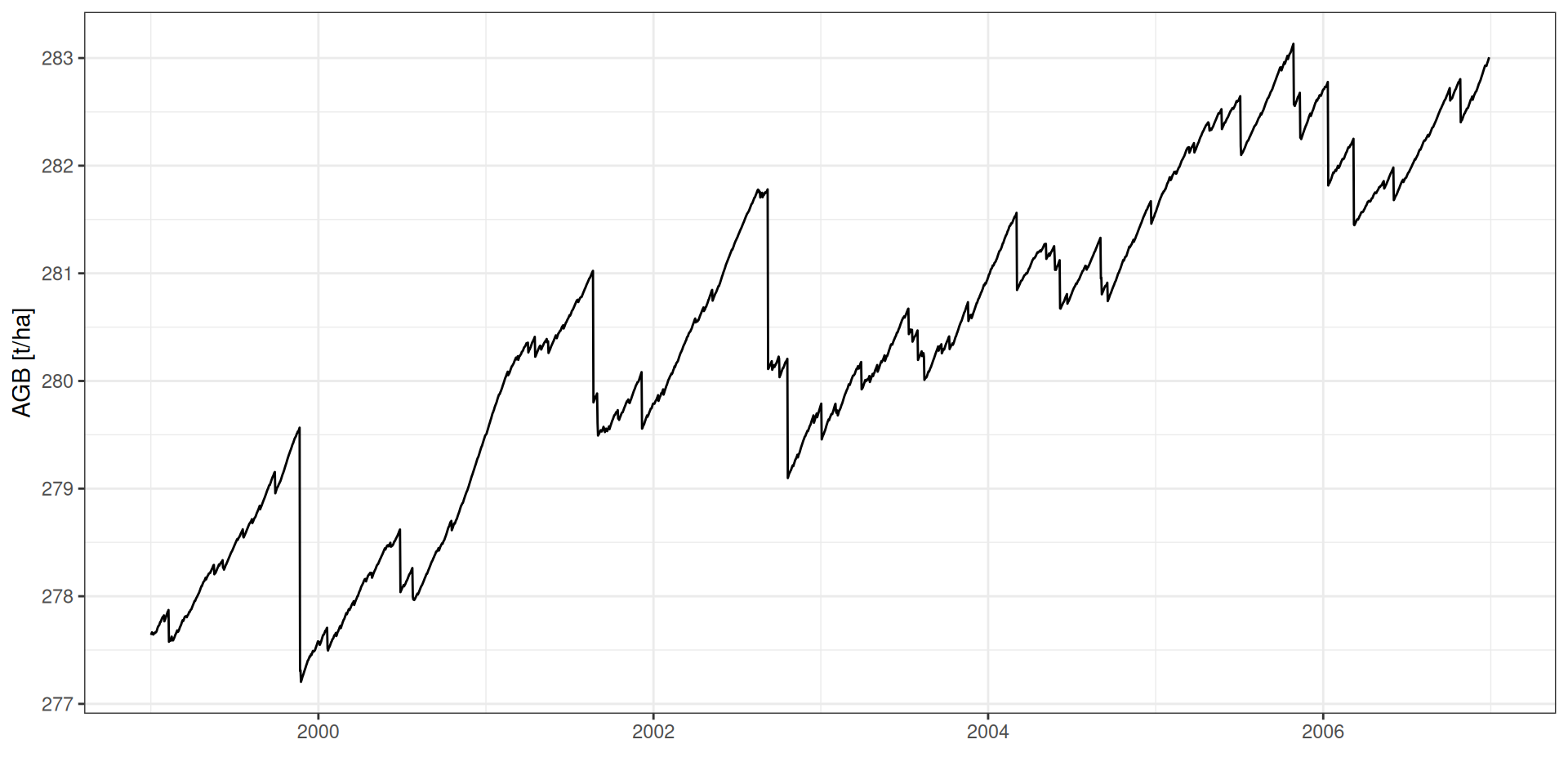

Dinâmica florestal

read_tsv("data/day2/R1_0_sumstats.txt") %>%
  mutate(date = as_date("1999-01-01") + iter) %>%
  ggplot(aes(date, agb/10^3)) +
  geom_line() +
  theme_bw() + xlab("") + ylab("AGB [t/ha]")

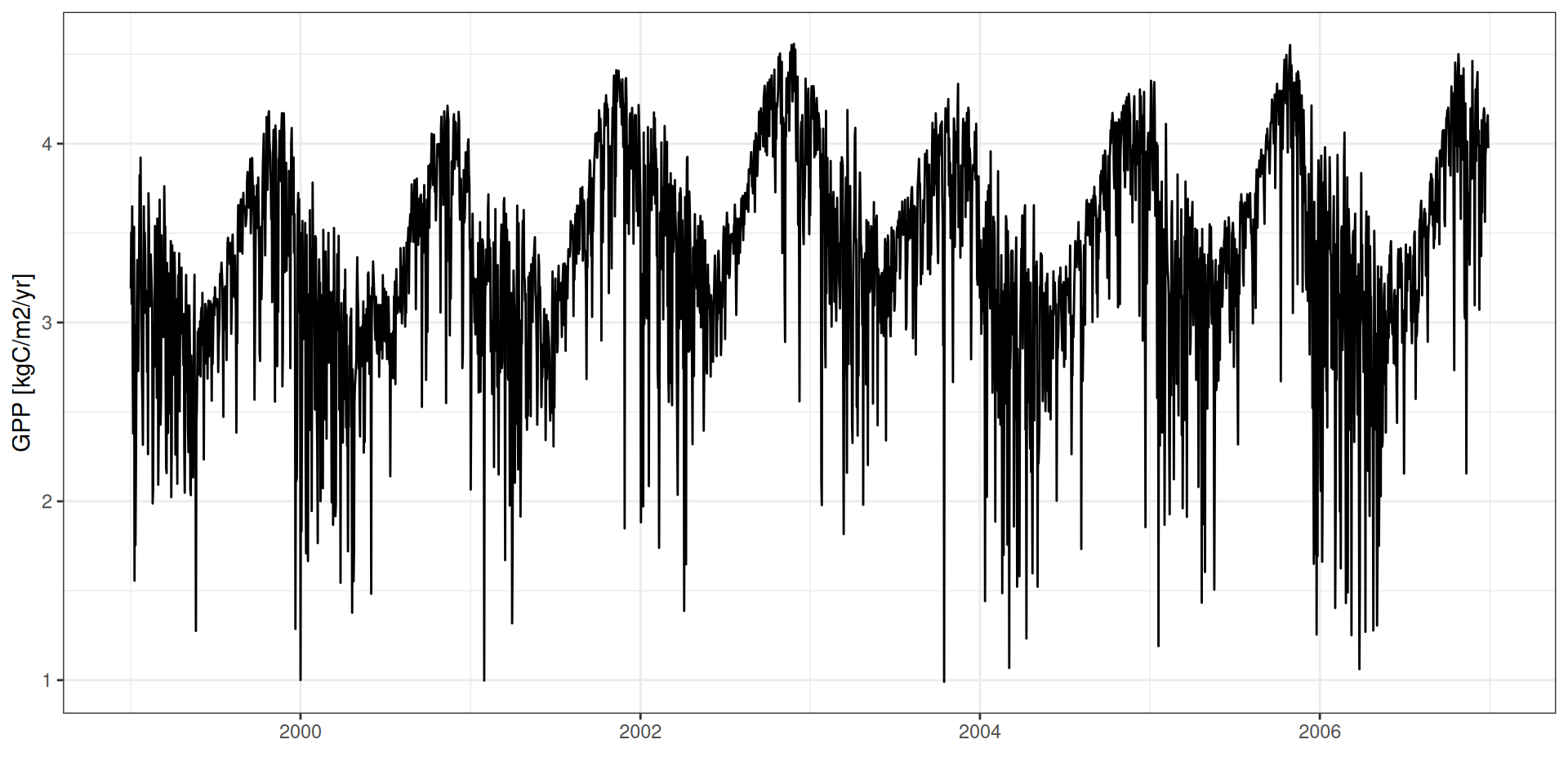

GPP: Produtividade Primária Bruta

read_tsv("data/day2/R1_0_sumstats.txt") %>%
  mutate(date = as_date("1999-01-01") + iter) %>%
  ggplot(aes(date, gpp*10^2*365/10^3)) +
  geom_line() +
  theme_bw() + xlab("") + ylab("GPP [kgC/m2/yr]")

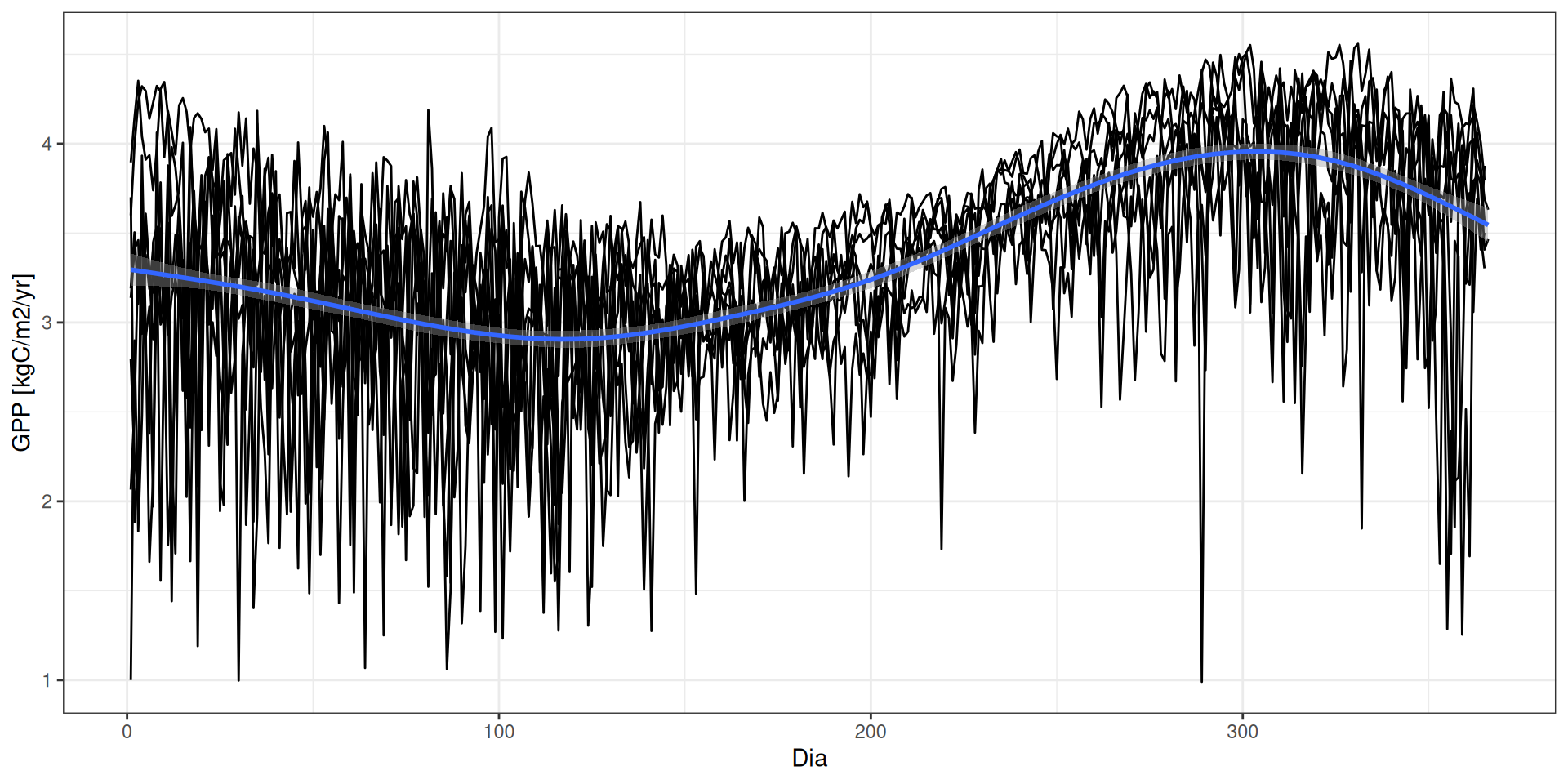

GPP - Sazonalidade

read_tsv("data/day2/R1_0_sumstats.txt") %>%
  mutate(date = as_date("1999-01-01") + iter) %>%
  ggplot(aes(yday(date), gpp*10^2*365/10^3)) +
  geom_line(aes(group = year(date))) +
  theme_bw() + geom_smooth() + xlab("Dia") + ylab("GPP [kgC/m2/yr]")

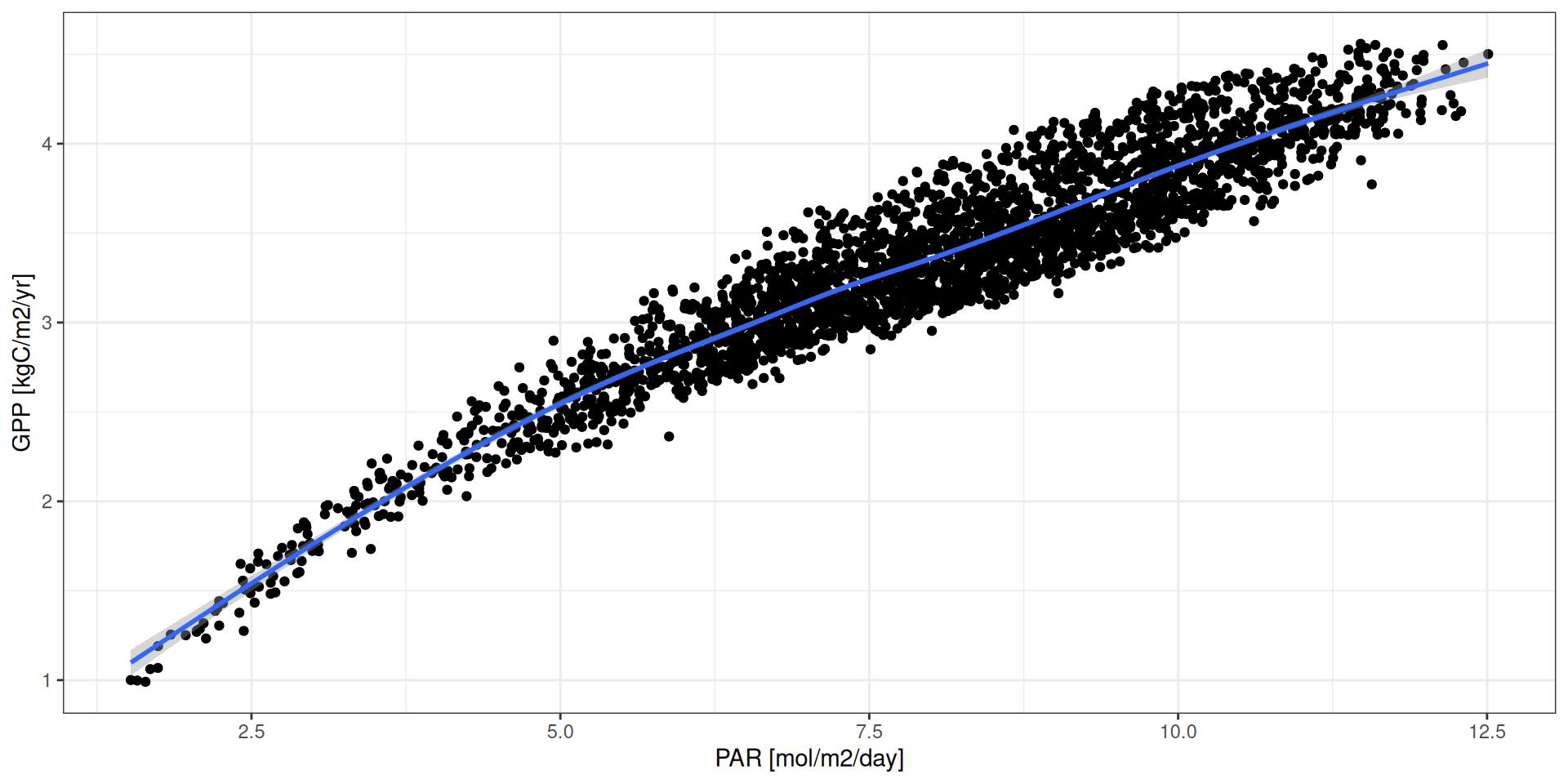

GPP - Fatores determinantes

par <- read_tsv("data/day2/R1_input_daily.txt") %>%
  group_by(DayJulian) %>%
  mutate(par = Snet*2.27*60*30/10^3/10^3/4) %>%
  summarise(par = sum(par))
g <- read_tsv("data/day2/R1_0_sumstats.txt") %>%
  mutate(date = as_date("1999-01-01") + iter) %>%
  mutate(par = par$par) %>%
  ggplot(aes(par, gpp*10^2*365/10^3)) +
  geom_point() +
  theme_bw() +
  geom_smooth() + xlab("PAR [mol/m2/day]") + ylab("GPP [kgC/m2/yr]")

GPP - Fatores determinantes

g

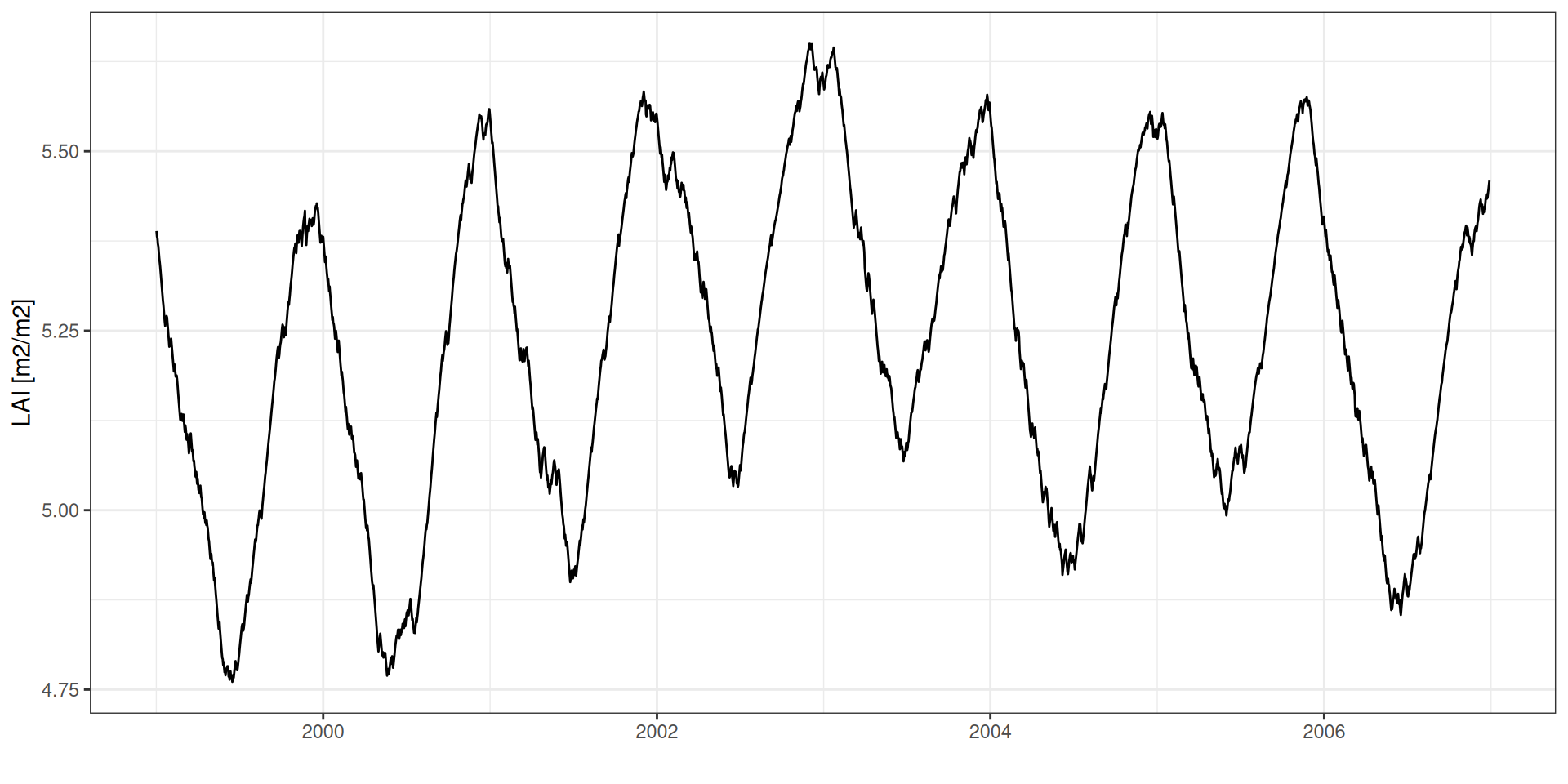

LAI: Índice de Área Foliar

read_tsv("data/day2/R1_0_LAIdynamics.txt") %>%
  mutate(date = as_date("1999-01-01") + iter) %>%
  ggplot(aes(date, LAI)) +
  geom_line() + theme_bw() + xlab("") + ylab("LAI [m2/m2]")

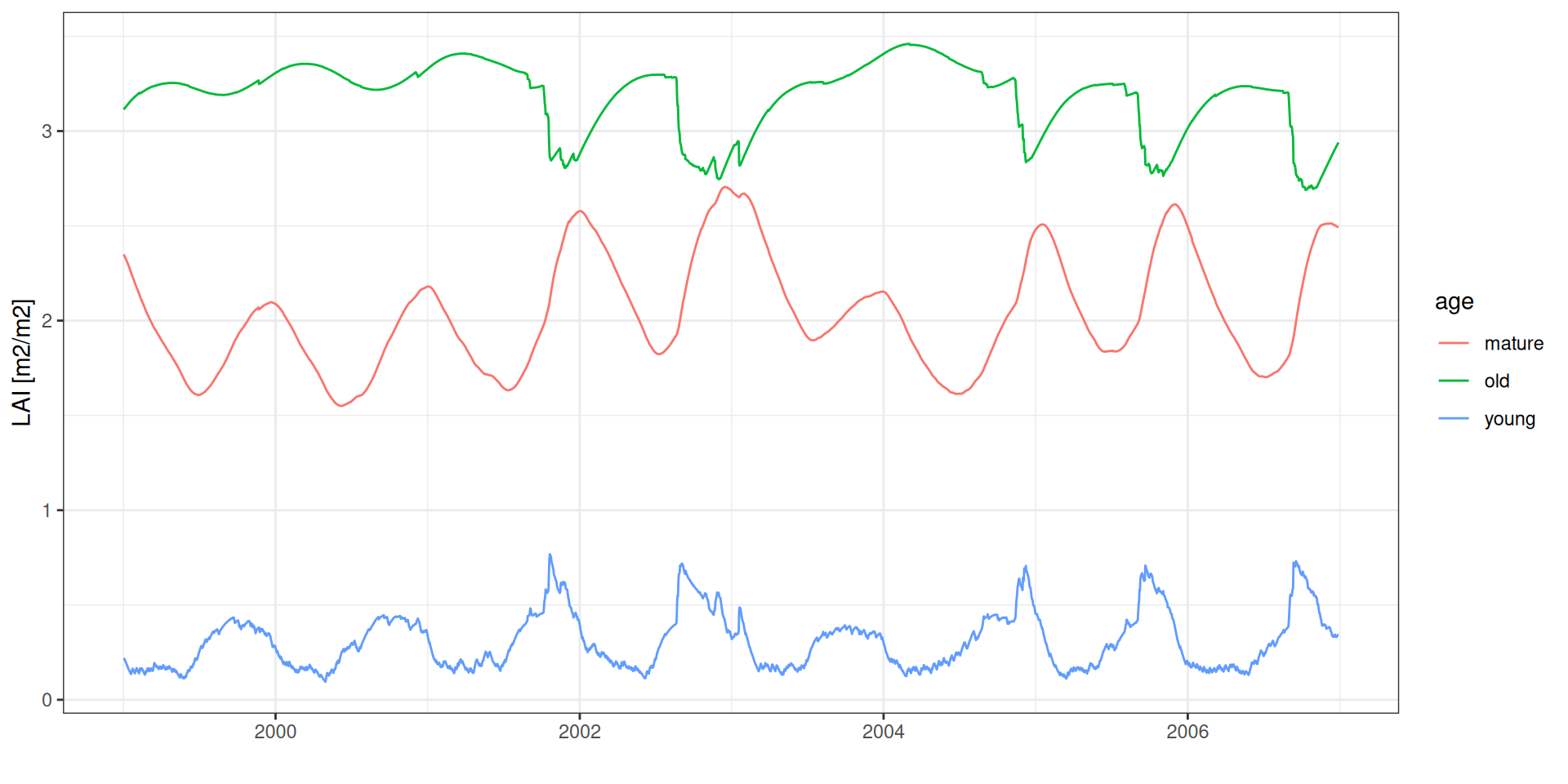

LAI por idade foliar

g <- list(
  young = read_tsv("data/day2/R1_0_LAIyoung.txt", col_types = "d"),
  mature = read_tsv("data/day2/R1_0_LAImature.txt", col_types = "d"),
  old = read_tsv("data/day2/R1_0_LAIold.txt", col_types = "d")
) %>% bind_rows(.id = "age") %>%
  gather(height, lai, -age, -iter) %>%
  group_by(iter, age) %>%
  summarise(lai = sum(lai)) %>%
  mutate(date = as_date("1999-01-01") + iter) %>%
  ggplot(aes(date, lai, col = age)) +
  geom_line() +
  theme_bw() + xlab("") + ylab("LAI [m2/m2]")

LAI por idade foliar

g

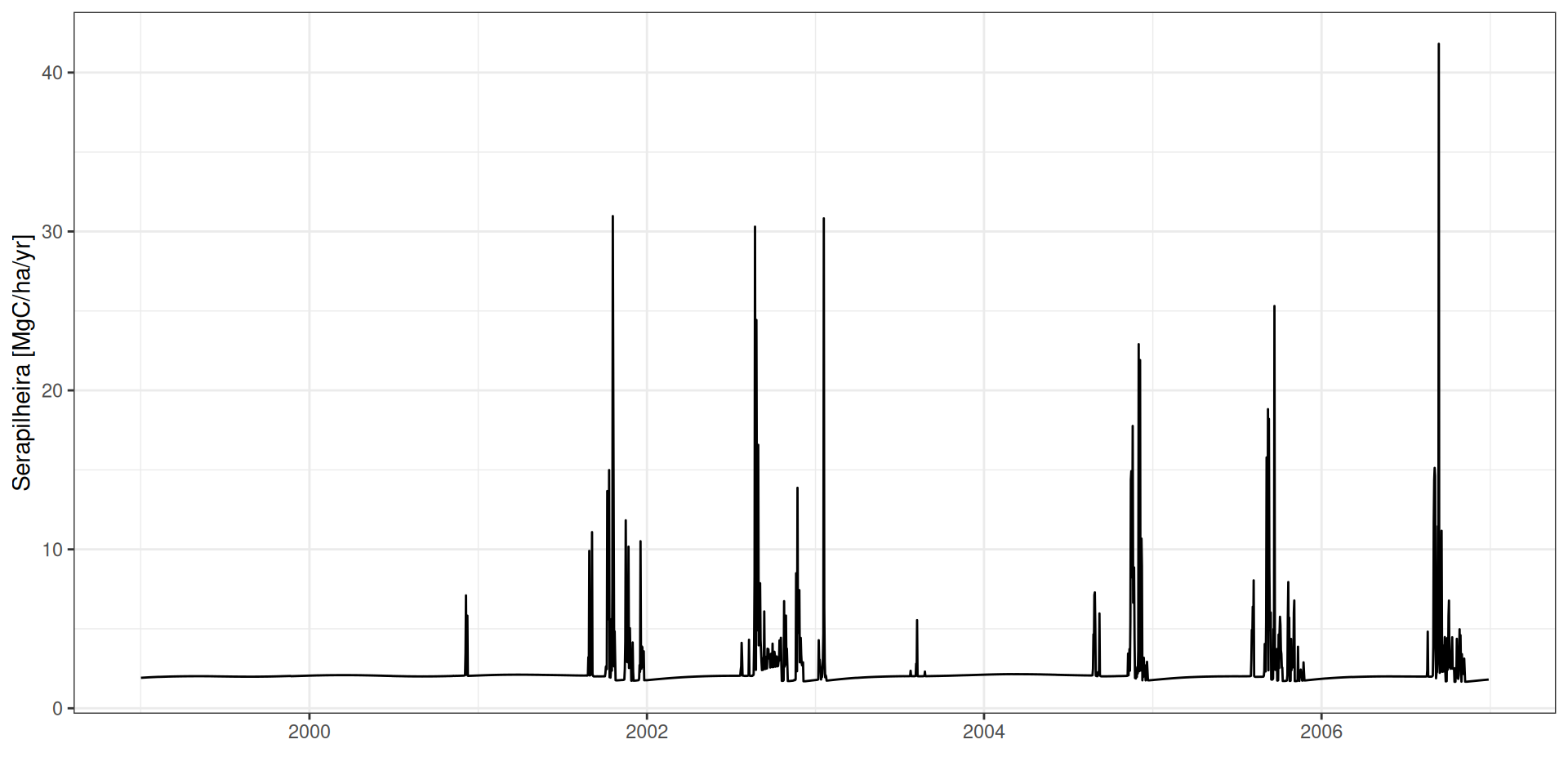

Serapilheira

read_tsv("data/day2/R1_0_sumstats.txt") %>%
  mutate(date = as_date("1999-01-01") + iter) %>%
  ggplot(aes(date, litterfall*365)) +
  geom_line() +
  theme_bw() + xlab("") + ylab("Serapilheira [MgC/ha/yr]")

Balanço hídrico

Balanço hídrico

\[\Delta SWC = P-I-Q-E-T-L\]

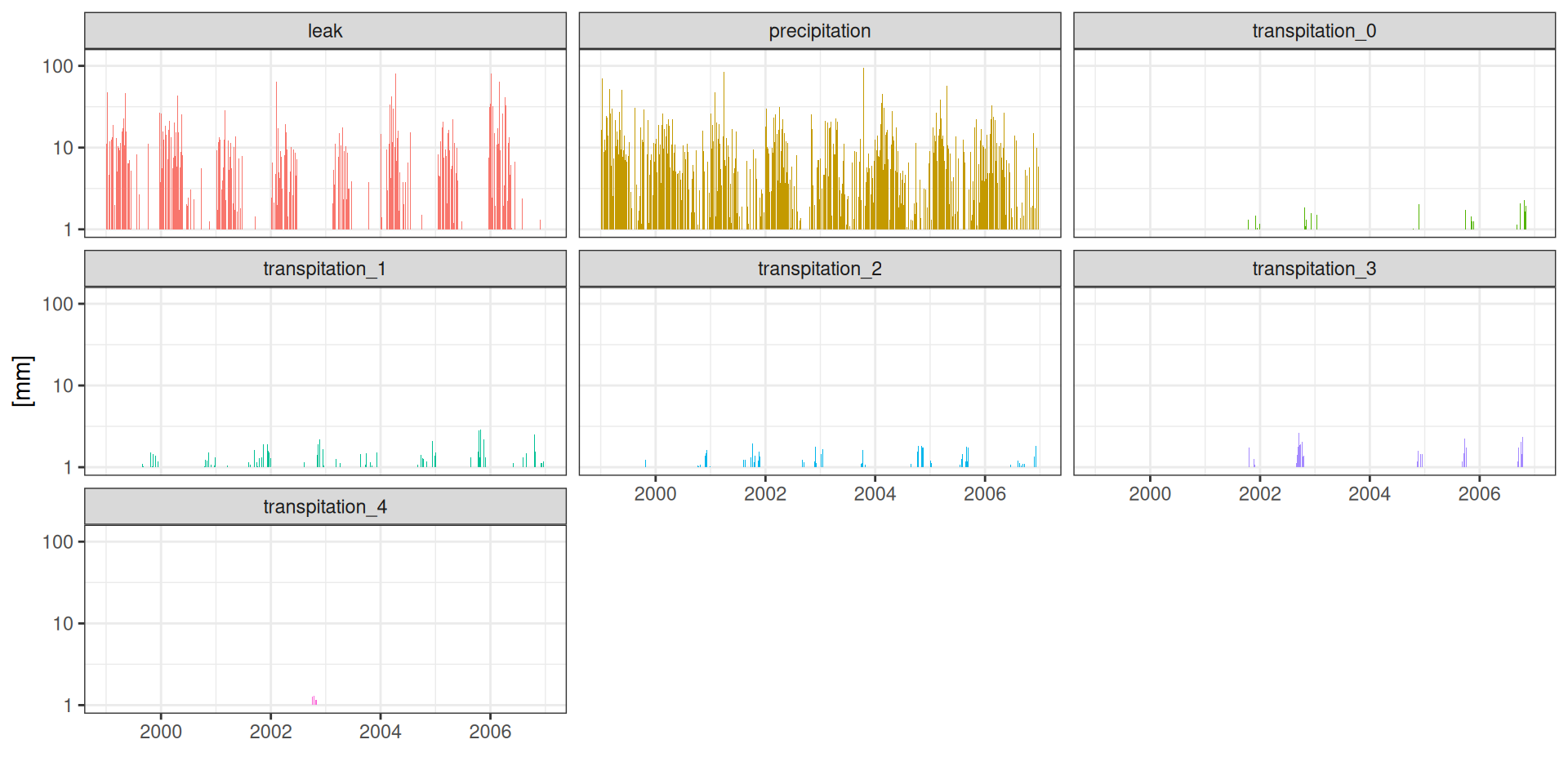

Balanço hídrico

g <- read_tsv("data/day2/R1_0_water_balance.txt") %>%
  mutate(date = as_date("1999-01-01") + iter) %>%
  mutate(precipitation = precipitation/10^3) %>%
  select(date, precipitation, interception,
         transpitation_0, transpitation_1, transpitation_2,
         transpitation_3, transpitation_4,
         leak, evaporation, runoff) %>%
  gather(component, value, -date) %>%
  mutate(value = value*1000) %>%
  filter(value >= 1) %>%
  ggplot(aes(date, value, fill = component)) +
  geom_col() +
  theme_bw() +
  scale_y_log10() + xlab("") + ylab("[mm]") +
  facet_wrap(~ component) + scale_fill_discrete(guide = "none")

Balanço hídrico

g

Balanço hídrico

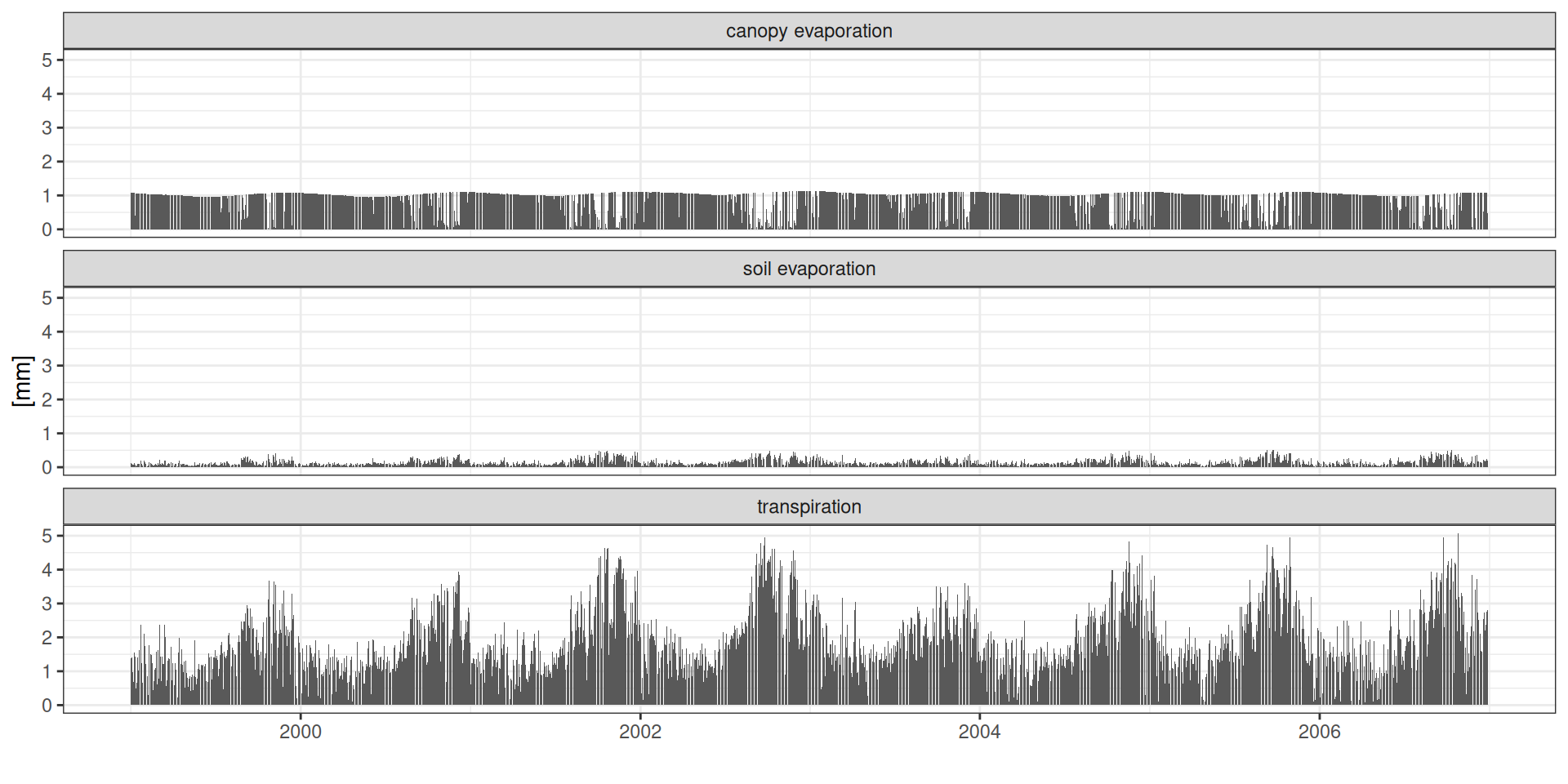

g <- read_tsv("data/day2/R1_0_water_balance.txt") %>%
  mutate(date = as_date("1999-01-01") + iter) %>%
  mutate(transpiration = (transpitation_0 + transpitation_1 + transpitation_2 +
                          transpitation_3 + transpitation_4)*1000,
         "soil evaporation" = evaporation*1000,
         "canopy evaporation" = (precipitation/1000-throughfall)*1000) %>%
  select(date, transpiration, "soil evaporation", "canopy evaporation") %>%
  gather(component, value, -date) %>%
  ggplot(aes(date, value)) +
  geom_col() +
  facet_wrap(~ component, nrow = 3) +
  theme_bw() + xlab("") + ylab("[mm]")

Balanço hídrico

g

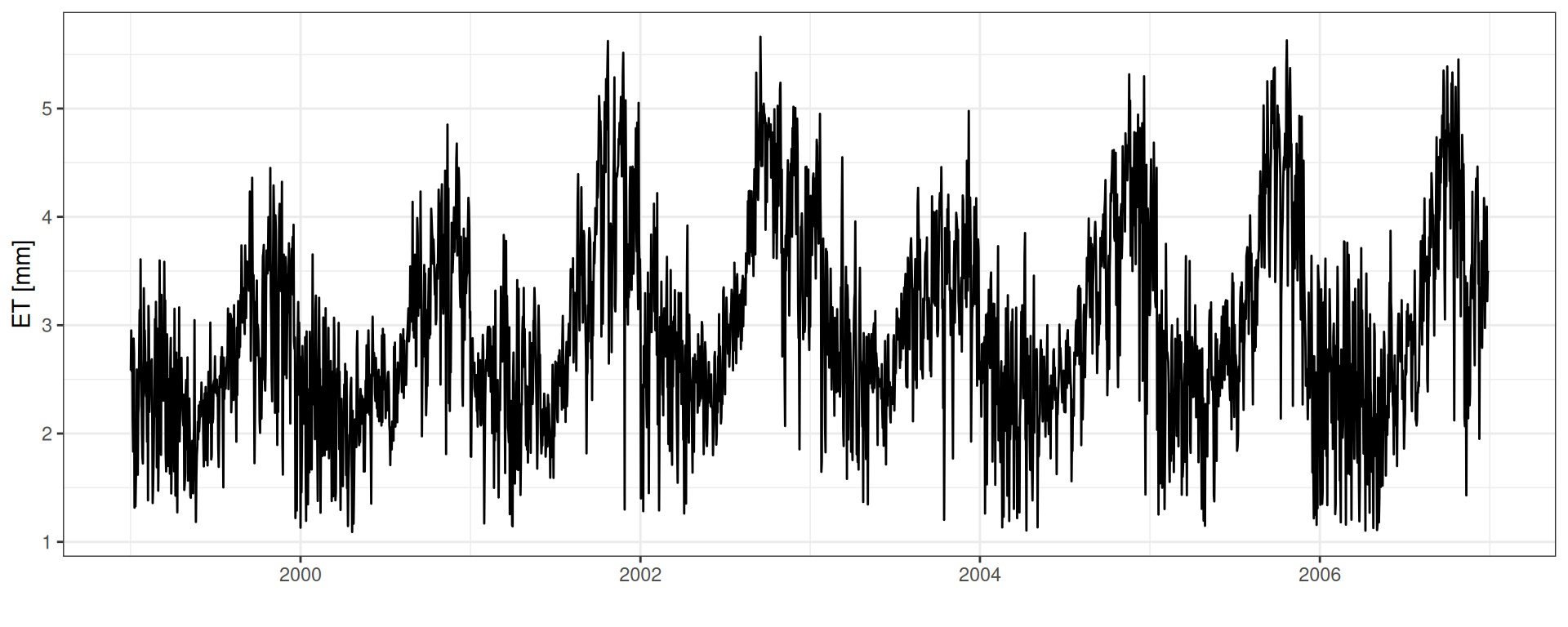

ET: Evapotranspiração

read_tsv("data/day2/R1_0_water_balance.txt") %>%
  mutate(date = as_date("1999-01-01") + iter) %>%
  mutate(et = (transpitation_0 + transpitation_1 + transpitation_2 +
                 transpitation_3 + transpitation_4 + evaporation +
                 (precipitation/1000-throughfall))*1000) %>%
  ggplot(aes(date, et)) +
  geom_line() +   theme_bw() + xlab("") + ylab("ET [mm]")

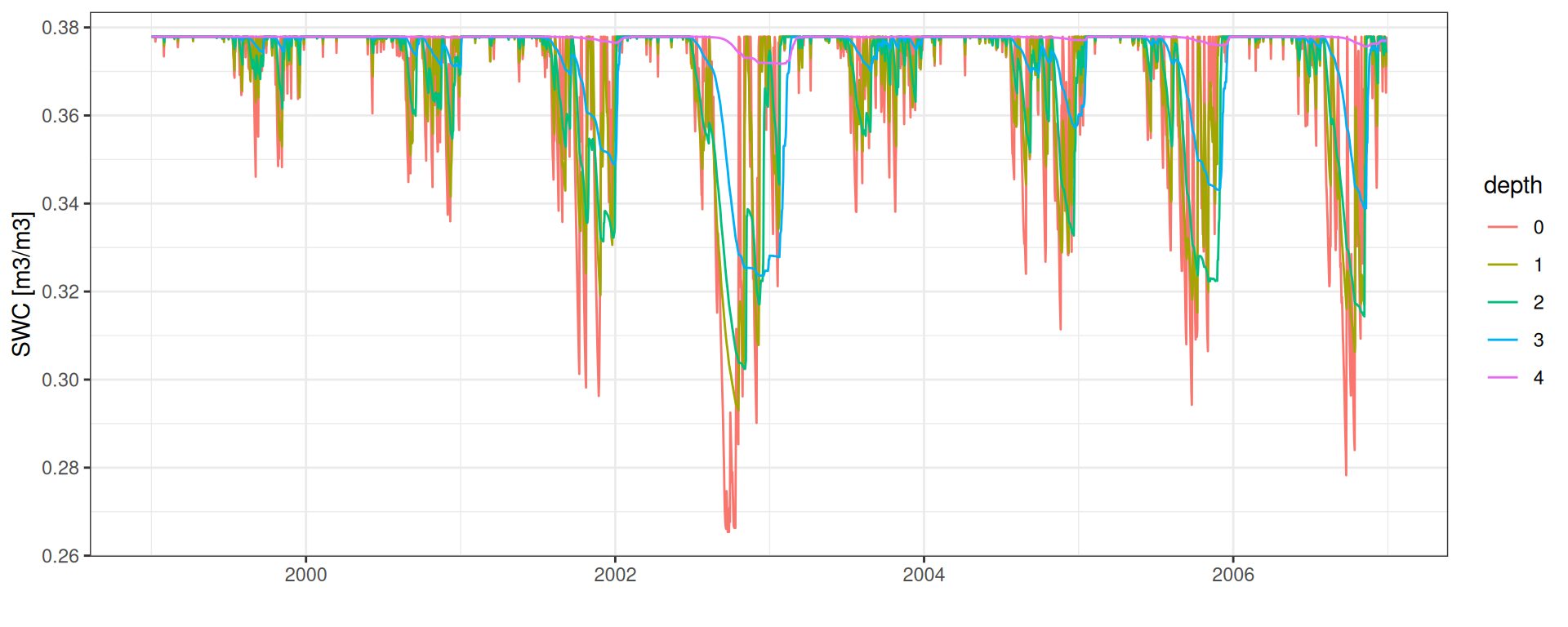

SWC: Conteúdo de Água no Solo

read_tsv("data/day2/R1_0_water_balance.txt") %>%
  mutate(date = as_date("1999-01-01") + iter) %>%
  select(date, starts_with("SWC")) %>%
  gather(depth, swc, -date) %>%
  separate(depth, c("x", "depth")) %>%
  ggplot(aes(date, swc, col = depth)) +
  geom_line() + theme_bw() + xlab("") + ylab("SWC [m3/m3]")

Conteúdo de água no solo

resolution <- 0.1
layers_depths <- c(0.1, 0.5, 1.5, 4, 16.1)
dry_months <- 10:11
wet_months <- 6:7
depths <- tibble(depth = layers_depths) %>%
  mutate(depth_max = cumsum(depth)) %>%
  mutate(depth_min = lag(depth_max)) %>%
  mutate(depth_min = ifelse(is.na(depth_min), 0, depth_min))
data <- read_tsv("data/day2/R1_0_water_balance.txt") %>%
  mutate(date = as_date("1999/01/01") + iter) %>%
  select(date, starts_with("SWC"), starts_with("SWP")) %>%
  gather(variable, value, -date) %>%
  separate(variable, c("variable", "layer"), convert = TRUE) %>%
  mutate(depth_max = depths$depth_max[layer+1]) %>%
  mutate(depth_min = depths$depth_min[layer+1]) %>%
  select(date, depth_min, depth_max, variable, value)
raster <- data %>%
  mutate(depth_min = round(depth_min, 1),
         depth_max = round(depth_max, 1)) %>%
  rowwise() %>%
  mutate(depth = list(seq(depth_min,
                          depth_max,
                          by = resolution))) %>%
  unnest(depth)

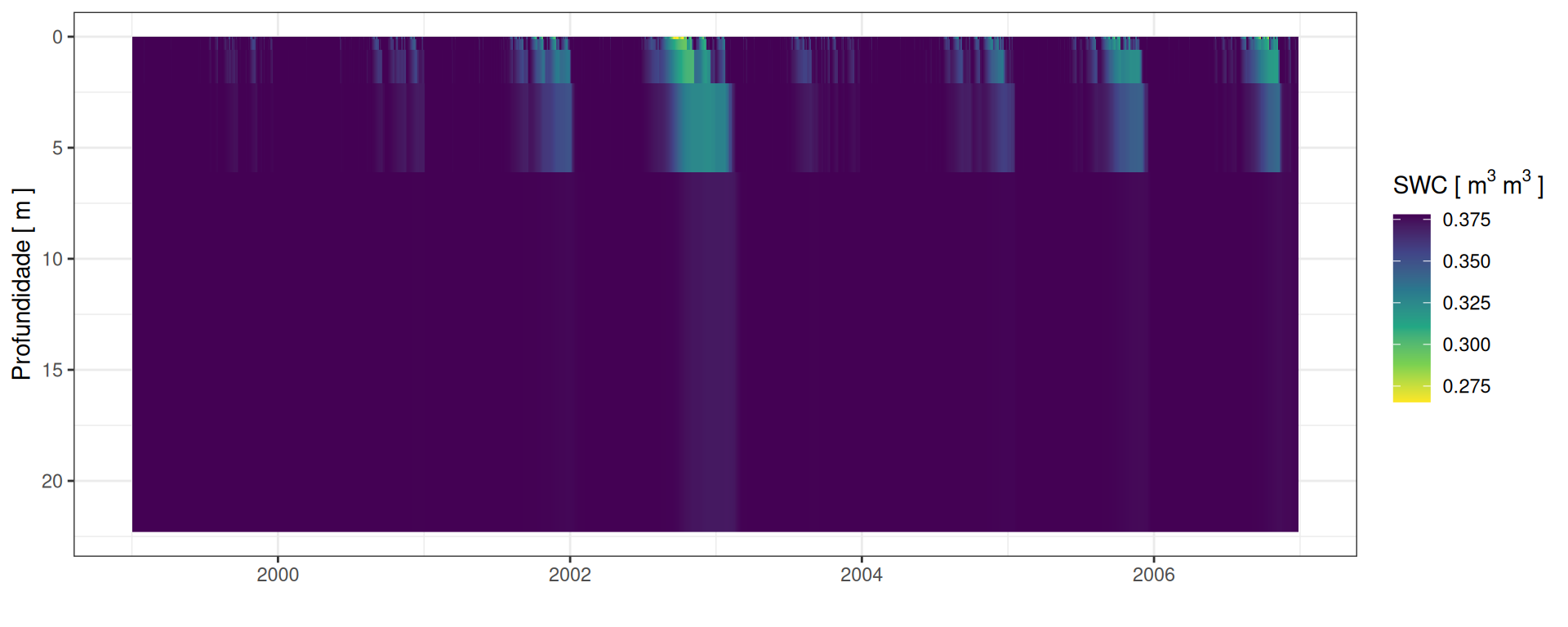

Conteúdo de água no solo

raster %>%
  filter(variable == "SWC") %>%
  ggplot(aes(date, depth, fill = value)) +
  geom_raster(vjust = 0) + theme_bw() +
  scale_y_reverse() + xlab("") + ylab("Profundidade [ m ]") +
  scale_fill_viridis_c(expression("SWC ["~m^3~m^3~"]"),
                       direction = -1)

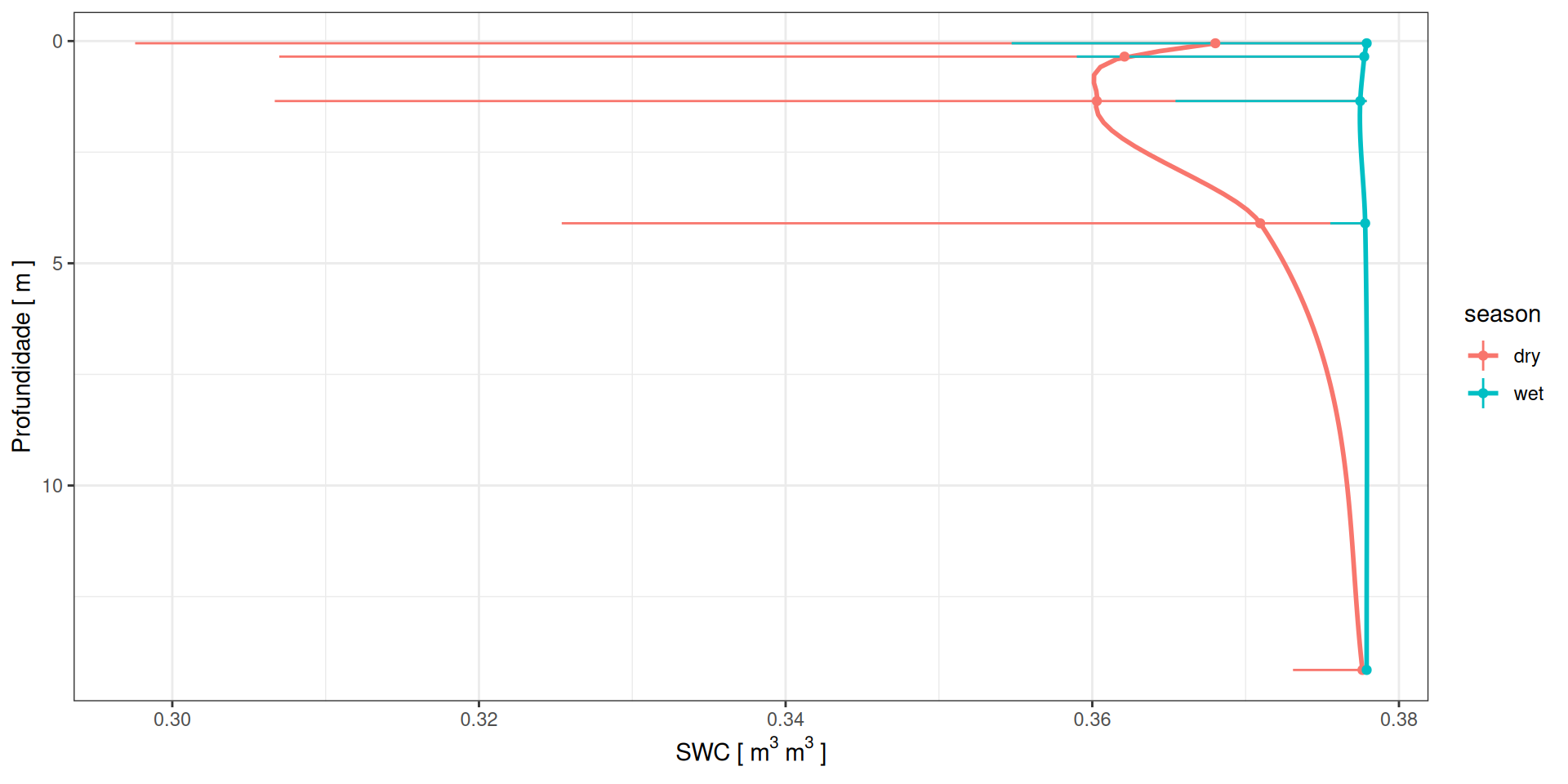

Perfis de água no solo

g <- data %>%
  filter(variable == "SWC") %>%
  filter(month(date) %in% c(dry_months, wet_months)) %>%
  mutate(season = ifelse(month(date) %in% dry_months, "dry", "wet")) %>%
  group_by(variable, depth_min, depth_max, season) %>%
  summarise(m = median(value),
            ll = quantile(value, .05),
            hh = quantile(value, .95)) %>%
  mutate(depth = (depth_min + depth_max)/2) %>%
  ggplot(aes(depth, m, col = season)) +
  geom_smooth(se = FALSE) +
  geom_linerange(aes(ymin = ll, ymax = hh)) +
  geom_point() +
  theme_bw() +
  coord_flip() +
  scale_x_reverse("Profundidade [ m ]") +
  ylab(expression("SWC ["~m^3~m^3~"]"))

Perfis de água no solo

g

Referências

Maréchaux, Isabelle, Fabian Jörg Fischer, Sylvain Schmitt, and Jérôme Chave. 2025. “TROLL 4.0: Representing Water and Carbon Fluxes, Leaf Phenology, and Intraspecific Trait Variation in a Mixed-Species Individual-Based Forest Dynamics Model Part 1: Model Description.” Geoscientific Model Development 18 (16): 5143–5204. https://doi.org/10.5194/gmd-18-5143-2025.
